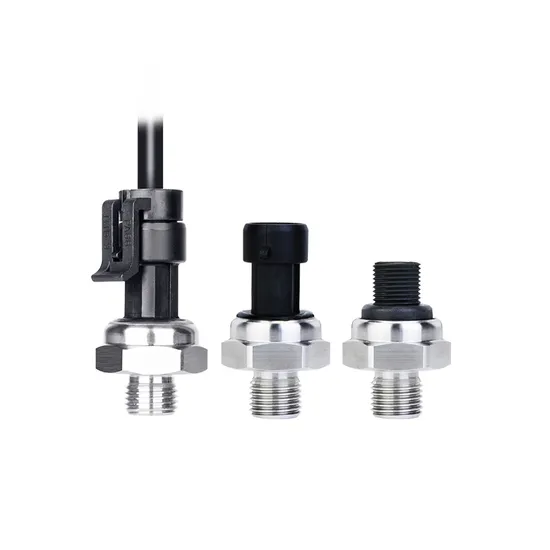

Firstrate FST800

• Overview
• Product Description
• Application
• Company Information
• Packaging & Shipping
• FAQ

Overview

Basic Info.

Model NO.	FST800-1500
For	Strain Gauge Pressure Transmitter
Output Signal Type	Analog Type
Production Process	Integration
Material	Stainless Steel
Thread Type	NPT
Wiring Type	Two-Wire
Measuring Medium	Liquid
IP Rating	IP65
Certification	CE
Customized	Customized
Pressure Range(Bar)	10, 16, 25bar
Signal Output	0.5~4.5VDC / 4~20mA
Signal Line Specification	3 Wire / 2 Wire
Accuracy	±1%FS
Power Voltage	5VDC / 9~30VDC
Electrical Connection	Packard connector
Pressure Interface	G1/4, NPT1/4, M20x1.5, M12x1.5, NPT1/8
Operating temperature	-40~+135ºC
Storage temperature	-40~+150ºC
IP grade	IP65
Transport Package	Standard Exporting Package
Specification	stainless steel
Trademark	Firstrate
Origin	Changsha China
HS Code	9031809090
Production Capacity	50000pieces/Month

Packaging & Delivery

Package Size1.00cm * 1.00cm * 1.00cm Package Gross Weight1.000kg

Product Description

FST800-1500 water pressure sensor 10 bar 150psi\/300psi

Q: Are you manufacturer?
A: Yes, We are professional sensor manufacturer over 50 years! Our technical team has more than 20 engineers.

Q: Can you accept OEM service ?
A: Yes, we can put your company information and logo on our sensors.

Q: Can I be your distributor?
A: Yes, we are looking for distributors in oversea market.

Q: What is your lead time?
A: Normally 7-10days. For quantity above100pcs, need extra 3-5 working days.

Purchase guide
To recommend you the most suitable sensor, please tell us below information.
1. Working temperature: -40~+125 °C ?
2. Test range?
3. Output: 4-20mA , RS485 or others?
4. Screw: G1/4, 1/4NPT, R1/4, M20*1.5?
5. Electrical connection: DIN43650, Packard, Direct lead?
6. Order quantity: ?

Product Description

Measuring medium	Water
Pressure range (bar)	10,16,25
Signal output	0.5~4.5VDC 4~20mA
Signal line specifications	3 Wire 2 Wire
Supply voltage	5VDC 9~30VDC
Precision	±1%FS
Total error band	±3%FS
Operating temperature	-40~+135ºC
Storage temperature	-40~+150ºC
Overload pressure	200%FS
Breaking pressure	300%FS
Vibration	11g(50~2000Hz)
Supply current	10mA (maximum)
Output response	3mS
Service life	5 million full-scale cycles
Short circuit protection	Have
Pressure port	G1/4,NPT1/4,M20x1.5,M12x1.5,NPT1/8
Electrical connections	Packard connector
Load Resistance	10KΩ (typical)
Protection level	IP65
Overvoltage protection	16VDC (5V power supply)
Material	304 stainless steel
Reverse voltage	-14VDC (5V power supply)
