Home Sensitive Gas Detector 24V Smart Gas Detector Alarm Detection

Basic Info.

Model NO.	AW-D132LC-C
Application	Home, Industry, Kitchen
Main Voltage	100-240VAC
Power Consumption	≤0.8W (Standby); ≤1.5W (Alarm)
Alarm Voltage Output	DC12V Pulse Valve or/and Relay
Relay Capacity	2A @30VDC (Max)
Alarm Horn	≤85dB @3 Meters
Value of Detection Threshold	LNG Gas: 3500ppm (7%Lel)
Warm up Time	Approximately 120 Seconds
Temperature Range	-10 to 50°c (14~122°f)
Humidity	≤95% Rh, Non-Condensing
Materials and Colors	ABS, White
Size	104.5mm* 58mm* 29.1mm
Weight	About 62g
Transport Package	Carton Box
Specification	104.5mm* 58mm* 29.1mm
Trademark	Asenware
Origin	China
Production Capacity	1000peice/Month

Product Description

Product Description

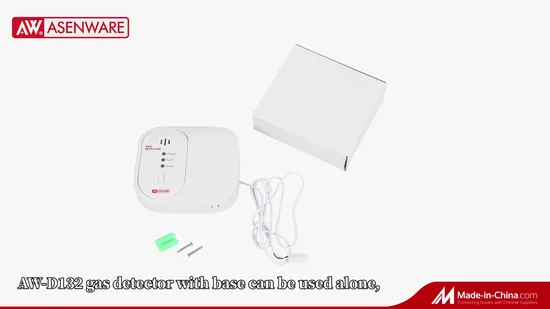

The AW-D132LC series gas detector is designed for using alone or connecting to fire alarm panel. Small and compact, the design and color makes it ideal for use in the home, small commercial properties, and recreational vehicles. It is intended to detect leakage of natural gas (methane gas), town gas, and bottled gas (propane gas).The gas detector can be mounted high (for methane gas) or low locations(for propane (LPG) gas).

Specification

Brand Name	Asenware
Model Number	AW-D132LC
Model	AW-D132LC series
Main Voltage	100-240VAC (with adaptor Micro USB 1A @5V)
Power Consumption	≤0.8W (Standby); ≤1.5W (Alarm)
Alarm Voltage Output	DC12V pulse valve or/and Relay
Relay Capacity	2A @30VDC (Max)
Alarm Horn	≥ 85dB @3 meters
Value of Detection Threshold	LNG Gas: 3500ppm (7%LEL)
Warm Up Time	Approximately 120 Seconds
Temperature range	-10 to 50°C (14~122°F)
Humidity	≤95% RH, non-condensing
