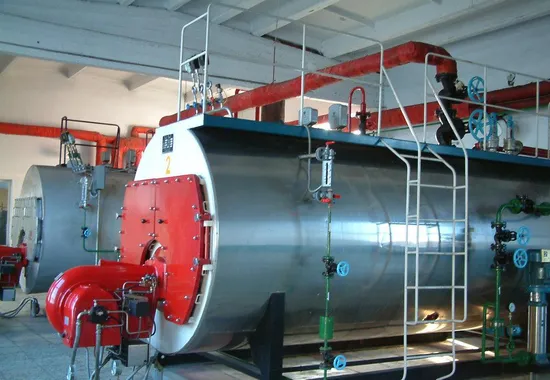

Industrial 1.0MPa 1ton Waste Oil Fired Steam Boiler for Jam Making Industry

• Overview
• PRODUCT INTRODUCTION
• PRODUCT TECHNIACAL PARAMETERS
• PRODUCT DETAILS
• BOILER APPLICATIONS
• COMPANY PROFILE
• PACKING & SHIPPING
• FAQ

Overview

Basic Info.

Model NO.	WNS1-1.25-Y. Q
Installation	Packaged Boiler
Structure	Fire Tube
Media	Steam and Water
Water Circulation	Forced Circulation
Drum Placement	Horizontal Boiler
Pressure	Pressure
Manufacturing Level	A
Burning Style	Chamber Combustion Boiler
Usage	Industrial, Home, Vehicle, Power Station
Transport Package	Naked with Plastic Film
Trademark	REACH BOILER
Origin	China
HS Code	8402190000
Production Capacity	5000ton/Year

Product Description

Q1: What about after sales service, such as installation and commissioning?

Answer:(1)English manual, drawings are supplied with boiler. (2)Engineers are able to instruct installing and commissioning abroad. Q2: What are the main products? Answer:(1)Oil fired steam boiler, capacity from 0.1t-20t (2) Gas fired steam boiler, capacity from 0.1-20t (3) Electric steam generator, capacity from 36kw-28800kw Q3: How to insure your product quality? Answer:(1)Strength calculation report with applied materials information; (2)100%NDT(non-destructive inspection) report of steel plate, tube and welding rod; (3)100% X-ray inspection(welding seam): ensure the quality of entire boiler; (4)Hydrostatic test: ensure the standard working pressure and safety; (5)Third-party inspection report; (6)Passed ISO, ASME certifications

PRODUCT INTRODUCTION

PRODUCT TECHNIACAL PARAMETERS

Model No.	WNS0.5-1.0-Y/Q	WNS0.7-1.0-Y/Q	WNS1.0-1.0 /1.25-Y/Q	WNS1.5-1.0/1.25 -Y/Q	WNS2-1.25/1.6/2.5 -Y/Q	WNS3-1.25/1.6/2.5 -Y/Q	WNS4-1.25/1.6/2.5 -Y/Q	WNS5-1.25/1.6/2.5 -Y/Q
Rated Evaporation (t/h)	0.5	0.7	1	1.5	2	3	4	6
Rated Pressure (Mpa)	1.0	1.0	1.0/1.25	1.0/1.25	1.25/1.6/2.5	1.25/1.6/2.5	1.25/1.6/2.5	1.25/1.6/2.5
Rated Steam Temp. (ºC)	184	184	184/194	184/194	194/205/220	194/205/220	194/205/220	194/205/220
Efficiency	93%	93%	93%	93%	93%	93%	93%	93%
Diesel Consumption (Kg/h)	32	42	61	90	120	184	243	300
Natural Gas (Nm³/h)	40	50	72	158	225	313	375	452
Steam outlet (mm)	DN40	DN40	DN50	DN50	DN65	DN80	DN80	DN100
Chimney (mm)	Φ200	Φ250	Φ300	Φ350	Φ350	Φ400	Φ450	Φ500
Weight (t)	2.5	3.5	5.5	6.8	7.6	9.9	11.7	13.7
Overall dimensions(L*W*D(mm))	2950*1570*1820	3300*1620*1950	3650*1950*2200	4270*1800*2130	4650*2100*2450	4650*2200*2800	4800*2300*2800	6000*2600*2900

Model No.	WNS6-1.25 /1.6/2.5-Y/Q	WNS8-1.25 /1.6-Y/Q	WNS10-1.25 /1.6-Y/Q	WNS12-1.25 /1.6-Y/Q	WNS15-1.25 /1.6-Y/Q	WNS20-1.25 /1.6-Y/Q
Rated Evaporation (t/h)	6	8	10	12	15	20
Rated Pressure (Mpa)	1.25/1.6/2.5	1.25/1.6	1.25/1.6	1.25/1.6	1.25/1.6	1.25/1.6
Rated Steam Temp. (ºC)	194/205/220	194/205	194/205	194/205	194/205	194/205
Efficiency	93%	93%	93%	93%	93%	93%
Diesel Consumption (Kg/h)	354	472	580	707	849	1157
Natural Gas (Nm³/h)	452	627	770	926	1027	1330
Steam outlet(mm)	DN125	DN125	DN150	DN200	DN200	DN200
Chimney(mm)	Φ600	Φ700	Φ750	Φ800	Φ900	Φ900
Weight (t)	15.9	18	25.4	27.2	40	45.5
Overall dimensions(L*W*D(mm))	6300*2700*2900	6500*2950*3100	7400*3730*3540	8700*3730*3800	8870*4100*4500	10000*4500*5600
