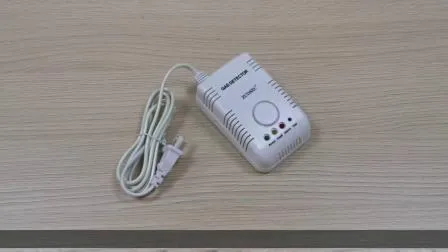

Wired/ Independent Use Gas Detector for Home Security

• Overview
• Product Description
• Features
• Product Parameters
• Related Products

Overview

Basic Info.

Model NO.	ZDD-306GI
Anti-Theft Alarm System Type	Smoke Alarms
Anti-Theft Alarm System-Wide	Space Security Alarm Detector
Anti-Theft Alarm System Distance	Common Detectors
Types of Smoke Detectors	Gas Detectors
Infrared Sensor Probe Type	Inclination Sensor
Infrared Sensor Installation	Embedded Wall
Combustible Gas Detector Model	NA-300
Product Name	Gas Detector
Power Supply	110VAC/220VAC
Alarm Output	N.C./ N.O. Optional
Alarm Volume	>85dB
Responding Time	<30s
Alarm Density	Coal Gas: 1000~5000ppm(0.1~0.5%), Liquid Petroleum
Material	ABS Plastic
Warranty	1 Year
Standard	GB15322-2003, En50194 UL1484
Function	Gas Leak Alarm
Color	White
Working Temperature	-10°~ 60°
Humidity	<97%Rh
Size	11*7*4cm
PCB	MCU Processing/SMT Adopted
Transport Package	Color Box
Specification	CE, RoHS
Trademark	ZUDSEC
Origin	Shenzhen, China
HS Code	8531101000
Production Capacity	5000000PCS/Year

Product Description

Detecting natural gas Detector for providing early warning

Gas Leakage Detector: Self-detecting, no wrong report, and reliability. Can be used with the alarm system to send the sign to the control panel if detecting density with time reaches the limit figure required as below and then it alarms and the alarm control panel auto-dials the presetting telephone or mobile phone . It is designed for a wide range of residential where reliable gas leakage detection is required.

Wired/ Independent use optional.

- Detecting natural gas, providing early warning of developing gas leakage when gas density is detected to reach limit.

- High reliability sensor
- Auto-reset after alarm
- MCU processing/SMT adopted; excellent stability
- Auto-check and indicate of Malfunction
- Alarm output N.C./ N.O. optional
- Backup battery.
- Meet GB15322-2003 EN50194 UL1484 standards.

Product Description Features Product Parameters

Specifications

Power supply:110VAC/220VAC/230VAC ,9V-20VDC Working temperature: -10°~ 60° : Humidity:<97%RH Working frequency: 315MHz or 433MHz Alarm density: Coal gas: 1000~5000ppm(0.1~0.5%), Liquid petroleum gas:1000~5000ppm(0.1~0.5%), natural gas: 1000ppm~5000ppm(0.1~1%) Responding time: less than 30 seconds, Instauration time: <30s Insulation: Insulation resistance>50 Ω; Electric strength>1500V AC Alarm volume: >85db Size: 11*7*4cm; ; Packing box: 15*11*5.5cm; Weight: 0.2kg/pc
